ESD-Compliant PCB Magazines

Ensure the precision of your production with PCB magazines from MIKI-PLASTIK.

PCB magzines from MIKI-PLASTIK guarantee high stability, dimensional accuracy and parallelism of the side walls, as well as simple and reliable adjustability. Magazine production is carried out 100% in-house, from machining to injection molding to final assembly.

Current adjustability in the following 3 versions:

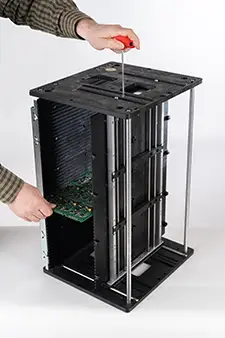

• Width adjustment manually, fixed with 4 screw clamps.
• Width adjustment synchronized by hand using a standard socket wrench, fixed with 2 screw clamps (all from one side).
  » Animation for synchronized adjustability
• Width adjustment automatically, motorized via the existing coupling, fixation via self-locking trapezoidal thread spindle, securing is not required as the trapezoidal thread shaft is self-locking.

Standardized technical versions:

• All versions are compatible with each other.
• Suitable for reversing operation with transport lock: locking and unlocking by hand and in automatic operation. Or alternatively with clamping springs per slot.
• Magazines can be stacked safely and space-savingly using 4 stacking knobs on the cover plate.
• Side walls in different web supports. Standard 3.0mm, 4.2mm and 5.0mm, special editions available on request.
• Width adjustment up to max. 550mm possible within 200 different standard types in the following basic sizes, see table 2.
• Special sizes available on request.
• Adaptation to all existing magazines, as well as input and output stations possible.
• Suitable for the following temperatures, see table 1

Material ESD	Temperature
Surface resistance <1088 ohms	PCB	Environment
Polystyrene (PS)	55°C	50°C
Polystyrene + Polycarbonate (PS+PC)	80°C	50°C
Polycarbonate (PC)	140°C	120°C
Polyethersulfone (PES)	170°C	150°C

Table 1

Type	External dimensions			PCB
	Width (mm)	Length (mm)	Height (mm)	Width (mm)	Length (mm)
090	320	355	563	60-256	353
713	320	400	564	50-258	399
717	380	400	564	50-310	399
715	426	400	564	50-355	399
719	400	460	564	50-330	459
895	460	535	564	60-390	522
896	530	535	564	60-460	522

Table 2

From the following standard sizes, you can assemble your magazine request in a modular system:
» Standard sizes (PDF)

Or print the following form and send it with the magazine dimensions you need:
» Form (PDF)
